ACCESS OF FAULT DATA: NARI NR PCS-974 (Power Transformer Non-Electrical Protections Relay)

Below is the procedure in the access of fault indications of the NR NARI Transformer Non-Electrical Protection Relay PCS-974. This post only discusses the access of relay indications and readings especially during faults or retrieval of data.

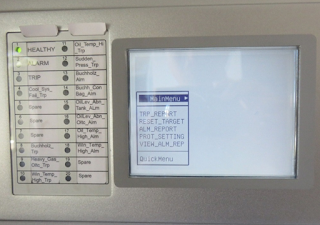

Press the “▲ ” to enter the main menu;

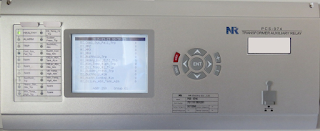

Default Display













Press the “▲ ” or “▼ ” to move to the “REPORT”menu, and then press “ENT”or “► ”


Press the “▲ ” or “▼ ” to select Alarm Report or Trip Report, and then press “ENT”


Press the “+”or “-”to select previous or next record;


Press the “◄ ” or “► ” to select previous or next command menu;


Press the “ENT”or “ESC”to

exit this menu.

#END#
